Three-Legged Angular Tower

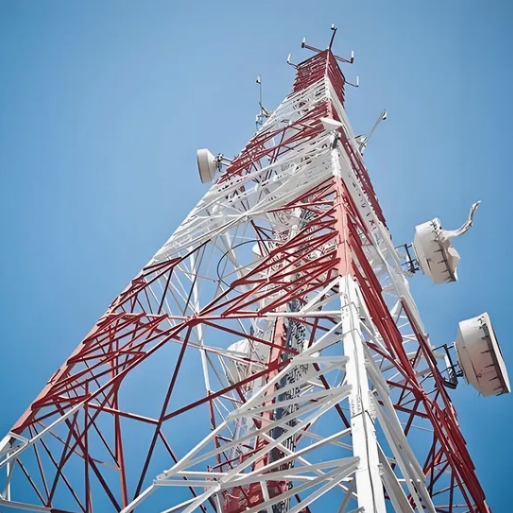

A Three-Legged Angular Tower is a self-supporting lattice steel structure​ characterized by three main vertical legs made of angle steel (L-shaped sections)​ arranged in an equilateral triangular configuration. The bracing members (cross arms, diagonals, horizontals) are also typically fabricated from angle steel sections, connected via bolted gusset plates. The structure tapers from a wider triangular base to a narrower apex, providing inherent stability against overturning and wind loads.

This tower type belongs to the broader Lattice Tower​ family and is the most traditional, cost-efficient form of tower construction, particularly for power transmission and telecommunications in open or rural areas.

Key Structural Features

Advantages

Cost-Effective: Angle steel is the most economical structural steel form; lower material cost per ton compared to tubular sections.

Proven Reliability: Decades of field experience globally; well-understood design methodology.

Easy Transport & Assembly: Angle sections can be bundled flat-packed, minimizing shipping volume; bolted assembly requires no specialized welding on site.

Excellent Wind Transparency: Open lattice structure allows wind to pass through, reducing overall wind load compared to solid or tubular towers.

High Load Capacity: Three-leg triangular configuration provides excellent strength-to-weight ratio for medium-height applications.

Simple Foundation: Three-point footing reduces concrete volume compared to four-leg designs.

Common Applications

Power Transmission: Medium-to-high voltage lines (10kV–220kV), especially in rural, mountainous, or developing regions.

Telecommunications: 4G/5G base stations in suburban/rural areas, microwave relay towers.

Broadcasting: FM radio and TV transmission antennas.

Lighting & Surveillance: Floodlight towers, perimeter security camera masts.

Design Standards

Three-legged angular towers are typically engineered per:

TIA-222-G/H​ (Telecommunications Industry Association – Structural Standard for Antenna Supporting Structures)

ASCE 10​ (Design of Latticed Steel Transmission Structures)

EN 1993-3-1​ (Eurocode 3 – Towers, Masts, and Chimneys)

IEC 60826​ (Design Criteria for Overhead Transmission Lines)

IS 802​ (Indian Standard – Use of Structural Steel in Overhead Transmission Line Towers)

Typical Components

1. Main Legs: Continuous angle steel sections (e.g., L100×10, L150×15, L200×20) running the full height, spliced at intervals.

2. Bracing Members: Diagonal and horizontal angle steel sections forming the lattice web.

3. Gusset Plates: Steel plates connecting legs and bracing at each panel point.

4. Base Plates: Thick steel plates with anchor bolt holes at each leg footing.

5. Cross Arms: Horizontal extensions for conductor/antenna attachment.

6. Auxiliary Systems: Ladder, safety cable, lightning rod, grounding kit, anti-climbing devices.

Comparison: Three-Legged Angular vs. Three-Legged Tubular
