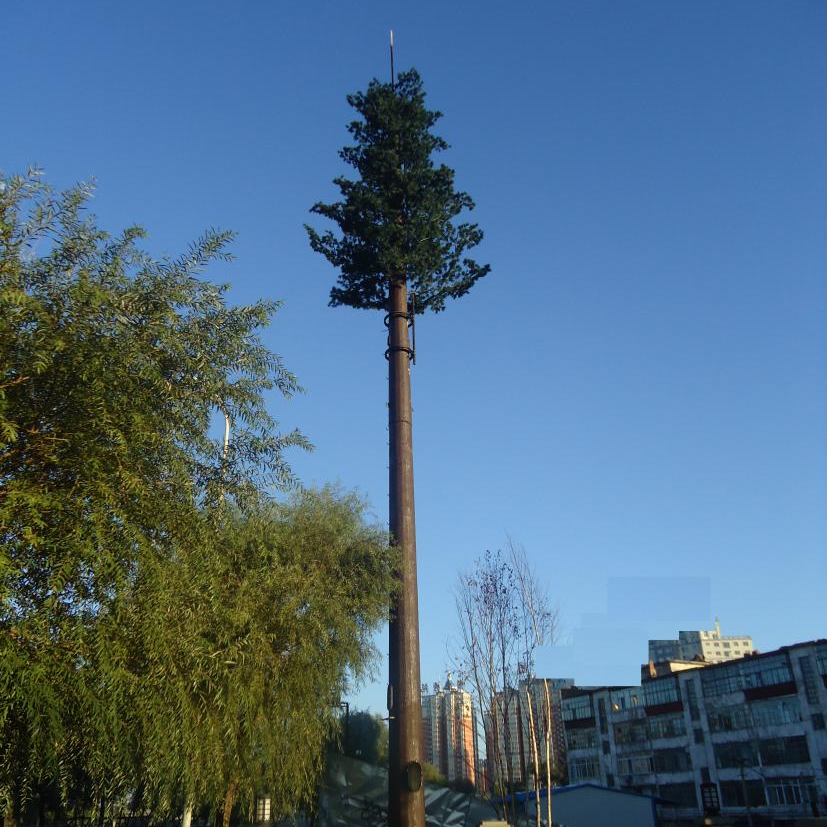

Bionic Tree Tower

A Bionic Tree Tower​ (also known as a Camouflaged Monopine Tower​ or Stealth Communication Tree) is a specialized telecommunication infrastructure designed to conceal cellular antennas and equipment within a life-like artificial tree structure. It merges a robust steel monopole core with high-fidelity synthetic foliage to provide 4G/5G coverage while minimizing visual impact in environmentally sensitive or aesthetically regulated areas.

Core Structure & Design

Internal Framework: The backbone is a hot-dip galvanized steel monopole​ (often Q355 or equivalent grade) designed to withstand high wind loads (e.g., up to 45 m/s) and seismic activity per standards like TIA-222or EN 1993.

Camouflage Cladding: The steel core is encased in synthetic bark​ (typically UV-resistant FRP or fiberglass) textured to mimic real tree trunks. Branches and leaves are made from RF-transparent materials​ (HDPE, FRP) to ensure signal transmission with minimal attenuation (< 1 dB).

Concealed Equipment: Antennas, RRUs, and cabling are hidden inside the trunk or within the dense artificial canopy, making them virtually invisible from the ground.

Key Advantages

Aesthetic Integration: Eliminates the "industrial eyesore" effect of traditional lattice towers, facilitating easier zoning approval in residential or scenic areas.

Public Acceptance: Reduces NIMBY ("Not In My Backyard") opposition by blending into the natural or landscaped environment.

Durability: Synthetic materials are weatherproof, anti-UV, and corrosion-resistant, offering a service life of 30+ years​ with low maintenance.

Multi-functionality: Can integrate street lighting, environmental sensors, or surveillance cameras alongside telecom gear.

Typical Applications

Scenic Areas & National Parks: Where strict landscape protection rules prohibit exposed steel towers.

High-end Residential Communities: To preserve property values and neighborhood aesthetics.

Urban Green Belts & Golf Courses: Locations requiring seamless harmony between infrastructure and greenery.

Coastal Regions: Using anti-corrosion variants (e.g., bionic coconut trees) resistant to salt spray.
