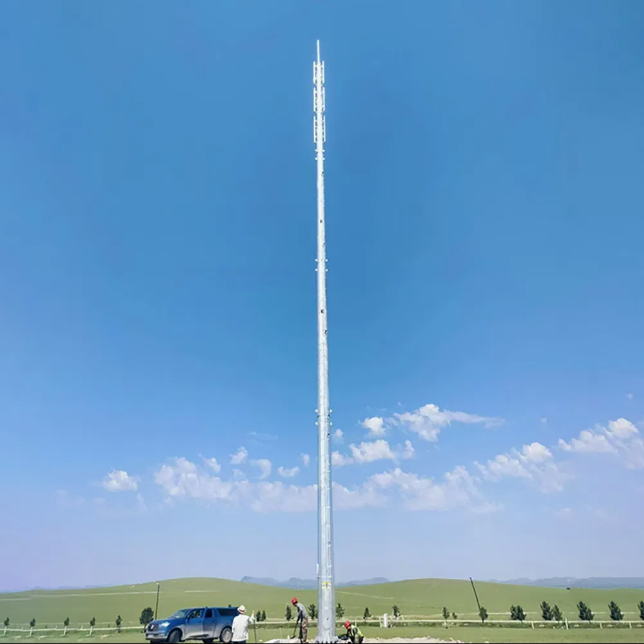

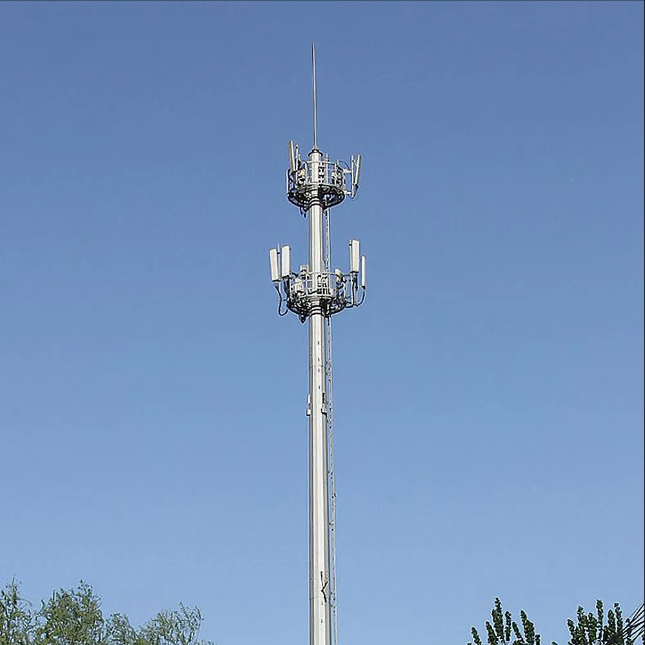

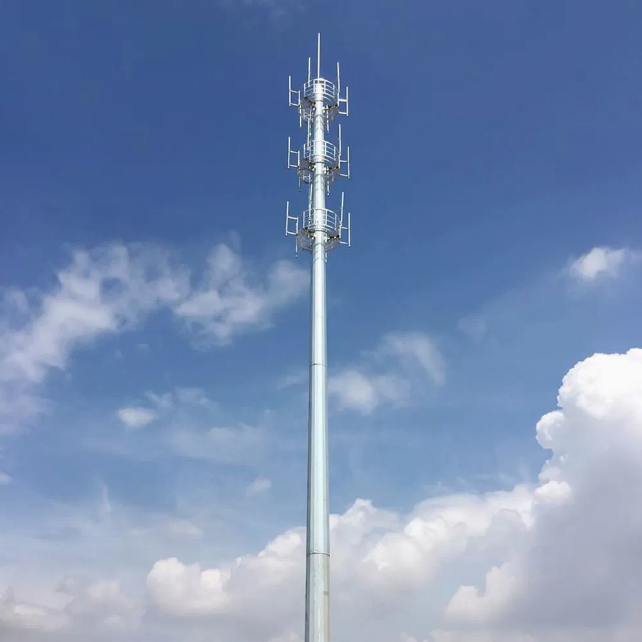

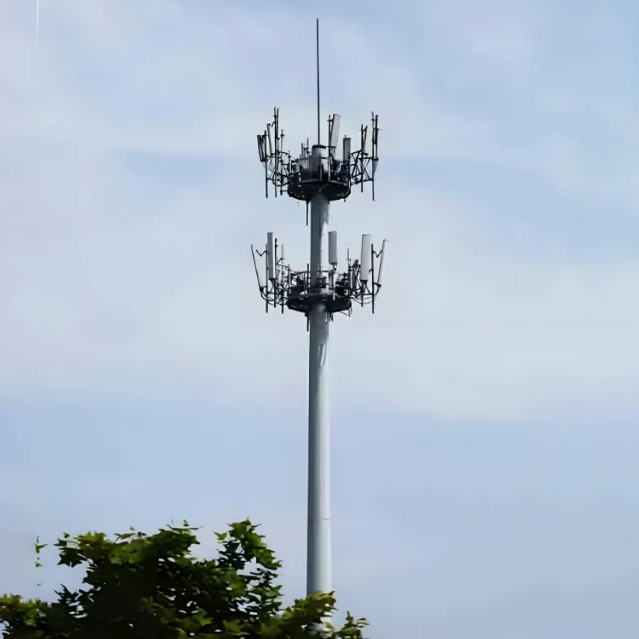

A Monopole Tower is a self-supporting, freestanding tubular structure consisting of a single tapered steel pole (usually polygonal or circular in cross-section). It requires no guy wires or external bracing — its stability comes entirely from its own bending stiffness and a reinforced concrete foundation.
Monopoles are widely used in telecommunications, street lighting, traffic signals, and power distribution where space is limited and visual impact must be minimized.
Feature | Description |
Structural Form | Single tapered steel tube (polygonal: 8-sided, 12-sided, 16-sided; or circular). |
Height Range | Typically 6–60 meters; beyond 60m, steel weight becomes uneconomical. |
Foundation | Single reinforced concrete pier or caisson (small footprint). |
Corrosion Protection | Hot-dip galvanizing per ASTM A123, plus optional paint/powder coating. |
Installation | Delivered in sections (flanged or slip-joint connection), assembled on site, lifted by crane. |
Minimal Footprint: Requires only 1–2 m² of ground space — ideal for urban sidewalks, rooftops, and narrow corridors.
Aesthetic Appeal: Sleek, clean profile; can be disguised as flagpoles, light poles, or artificial trees.
Fast Installation: Pre-fabricated sections allow erection in hours or days, compared to weeks for lattice towers.
Low Maintenance: Fewer exposed joints and no guy wires to inspect or re-tension.
High Strength-to-Weight Ratio: Modern high-strength steel (e.g., ASTM A572 Grade 65, Q420) enables taller monopoles with thinner walls.
Telecommunications: Cellular base stations (4G/5G), small cell deployments, microwave relay.
Smart City Infrastructure: Integrated lighting, surveillance cameras, environmental sensors.
Power Distribution: Medium-voltage (10kV–35kV) distribution poles in urban areas.
Traffic Management: Traffic signal poles, variable message signs.
Renewable Energy: Small wind turbine towers, solar monitoring stations.
Aspect | Monopole Tower | Lattice Tower (Angular) | Guyed Tower |
Footprint | Very small | Moderate | Large (guy anchors) |
Steel Weight | Highest per meter | Moderate | Lowest per meter |
Visual Impact | Low (clean look) | Moderate (open frame) | High (visible wires) |
Wind Performance | Good (aerodynamic shape) | Excellent (open truss) | Moderate (sway) |
Cost | High initial cost | Moderate | Low initial cost |
Height Limit | ~60m economical | Up to 150m+ | Over 600m possible |
TIA-222-G/H (Telecommunications Industry Association) - structural standard for antenna supporting structures.
ASCE 48 - design of steel transmission pole structures.
IEC 60826 - design criteria for overhead transmission lines.
EN 1993-1-1 (Eurocode 3) - general steel structure design.
1. Tapered Steel Shaft: Multi-sided or round, manufactured by press-bending and welding plate steel.
2. Base Plate: Thick steel plate with anchor bolt holes, welded to the bottom section.
3. Flanges / Slip Joints: Connection interfaces between shaft sections.

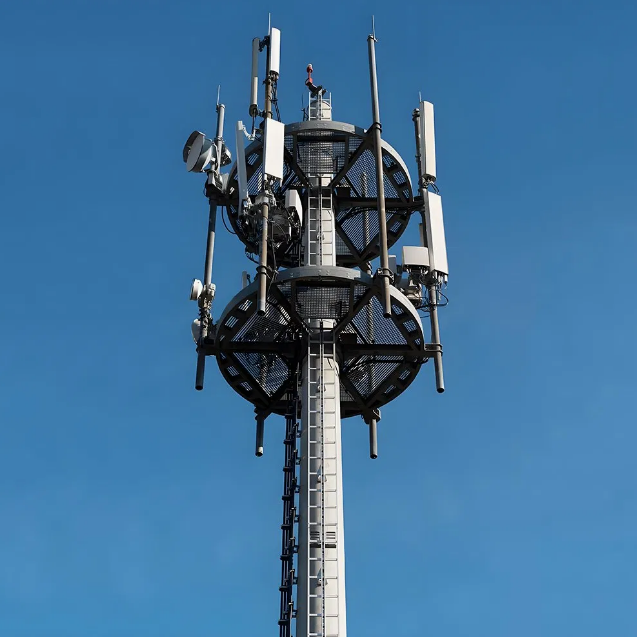

4. Platform(s): Small work platforms for antenna mounting and maintenance access.
5. Internal Ladder / Cable Guides: For climbing safety and cable management.
6. Lightning Rod & Grounding Kit: Essential for lightning protection.
