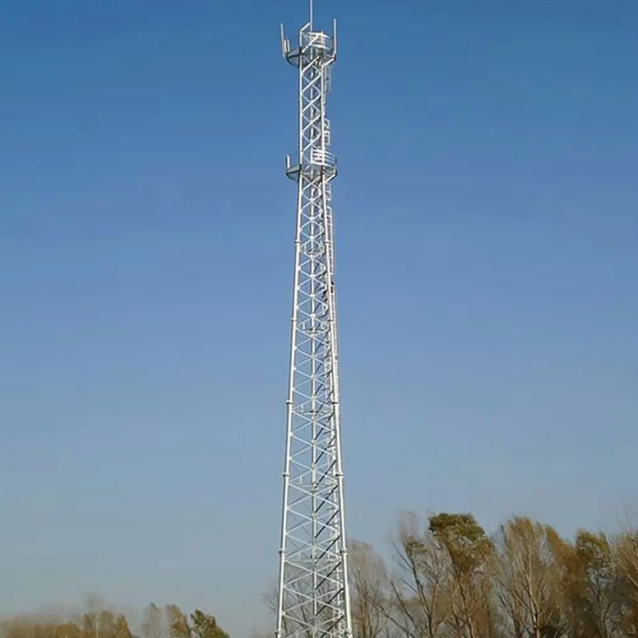

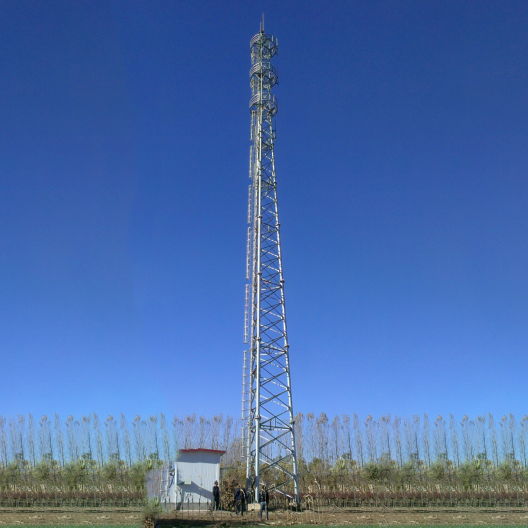

A Three-Legged Tubular Tower is a self-supporting steel lattice structure characterized by three vertical steel tubes arranged in an equilateral triangular configuration. Unlike traditional angular steel towers that use L-shaped sections, this tower uses hollow steel pipes (tubular sections) for the main legs and bracing members. The structure tapers from a wider base to a narrower top to optimize load distribution and wind resistance.
It belongs to the broader family of Lattice Towers but differs from the Monopole Tower (single tube) and Four-Legged Towers (square configuration).
Feature | Description |
Configuration | Triangular cross-section with three main tubular legs. |
Material | Seamless or welded steel pipes (e.g., Q235B, Q355B, ASTM A500, S355); bracings can be tubes or angles. |
Connections | Bolted flange connections (external or internal) or slip-joints for segment assembly; bracings connected via bolted gusset plates. |
Taper | Gradual tapering from base to top (e.g., 1%–2% slope per face) to enhance stability. |
Surface Treatment | Hot-Dip Galvanizing (ASTM A123 / ISO 1461) for corrosion protection (25–50 year lifespan). |
Aerodynamic Efficiency: Tubular members have a lower wind drag coefficient (~30% less than angular sections), making them suitable for high-wind or coastal areas.
Compact Footprint: Triangular base requires less land area than four-legged lattice towers; ideal for sites with space constraints.
Material Efficiency: Lighter than equivalent angular towers due to optimized tubular section geometry.
Aesthetics: Slimmer and cleaner appearance compared to bulky angle steel towers.
Ease of Transport: Components can be nested or bundled; flanged sections allow faster on-site assembly than bolted angle towers.
Telecommunications: 4G/5G base stations, microwave relay links, rural coverage.
Broadcasting: Radio/TV transmission antennas.
Power Distribution: 10kV–35kV distribution lines in mountainous or rural terrain.
Surveillance & Monitoring: Weather stations, environmental sensors, security cameras.
Remote Areas: Hilly/mountainous sites where foundation spreading is difficult.
Three-legged tubular towers are typically designed per:
TIA-222-G/H (Telecommunications Industry Association – Structural Standard for Antenna Supporting Structures)
ASCE 10 (Design of Latticed Steel Transmission Structures)
EN 1993-3-1 (Eurocode 3 – Towers, Masts, and Chimneys)
IEC 60826 (Design Criteria for Overhead Transmission Lines)
Comparison: Three-Legged Tubular vs. Monopole vs. Angular Tower
Aspect | Three-Legged Tubular | Monopole Tower | Angular (Lattice) Tower |
Main Members | Steel Tubes (3 legs) | Single Tapered Tube | Angle Steel (L-sections) |
Wind Load | Low (smooth tubular surface) | Medium | Higher (sharp edges) |
Footprint | Small–Medium | Smallest | Medium–Large |
Height Economy | Up to 60–80m typical | Up to 50–60m typical | >100m feasible |
Aesthetics | Moderate (lattice) | Best (sleek) | Industrial |
Cost | Moderate | High (material/transport) | Lowest (steel efficient) |
Height Range: 15 m – 80 m (customizable up to 120 m)
Design Wind Speed: Up to 200–300 km/h (depending on site class)
Seismic Resistance: Up to 8° intensity (or per local code)
Galvanization Thickness: ≥ 65 μm (ASTM A123)
Accessories: Internal/External ladder, rest/platforms, antenna brackets, lightning rod, grounding kit.
